Description

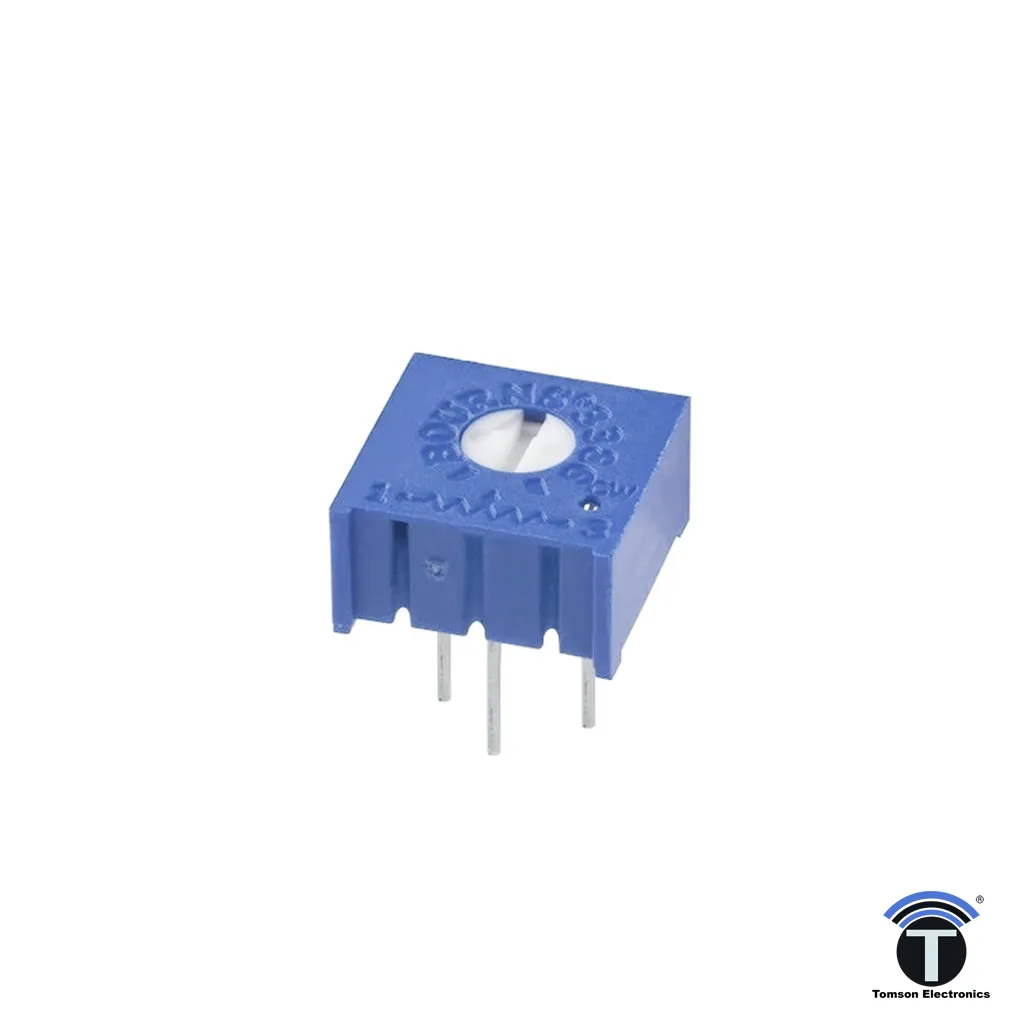

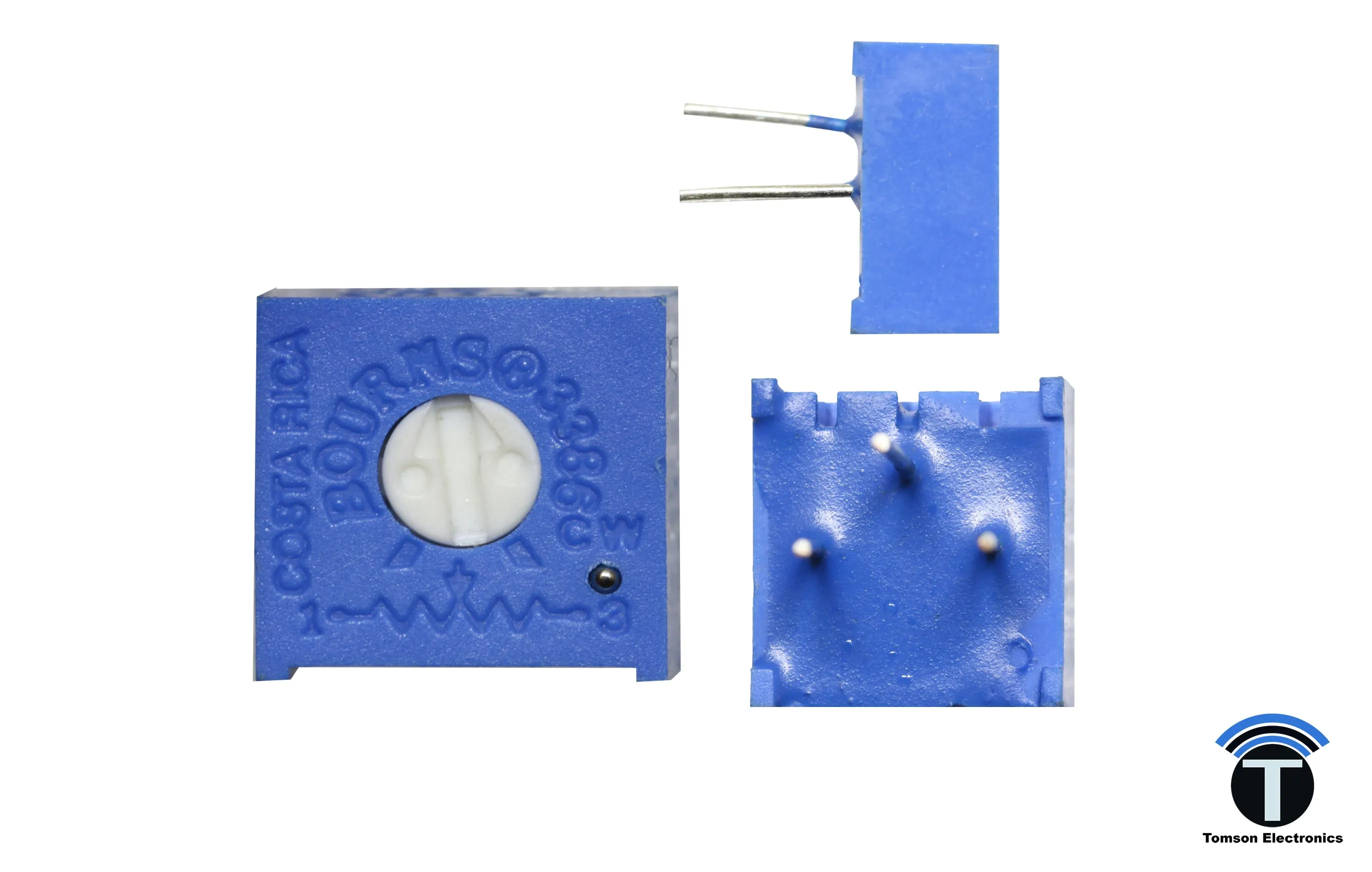

Trimmer/Trimpots is a high accuracy variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the trimpot is rotated.
The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and center pin outputs a variable voltage between 0 v and Vcc as the rotary cermet is rotated.

Features

Specifications:
Track Resistance: 100 K ohm
Resistance Tolerance:  ± 5%
Temperature Coefficient: ± 50 ppm/°C
Potentiometer Mounting: Through Hole
Adjustment Type: Top
Contact Resistance Variation : 1%
Full Power Rating Temperature: 85°C
Lead Diameter: 0.5mm
Operating Temperature Range: -55°C to 125°C
Resistance: 1K ohm , 2k ohm ,5k ohm , 10k ohm , 20k ohm, 50k ohm , 100k ohm , 500k ohm, 1 meG ohm
Resistor Element Material: Variable Rotary Trimmer
